Docker is a new and upcoming technology, this post walks through a high level overview of Docker and how you might incorporate it in to your workflow.
Docker is a way to package applications and the associated dependencies into a single unit called an image. This image can then be shared and run as a container, either locally as a developer, or remotely in your production infrastructure.
Some benefits include:
Some limitations are:
To run nginx, a simple web server, in a container the following can be used in your terminal:
$ docker run \
--rm \
--publish 127.0.0.1:8080:80 \
nginx
The important parts to note are:
docker run
- We wish to run a command in a containernginx
- the image name that we want to run. Docker will download this, and create a container--rm
- automatically remove the container when the command exits--publish

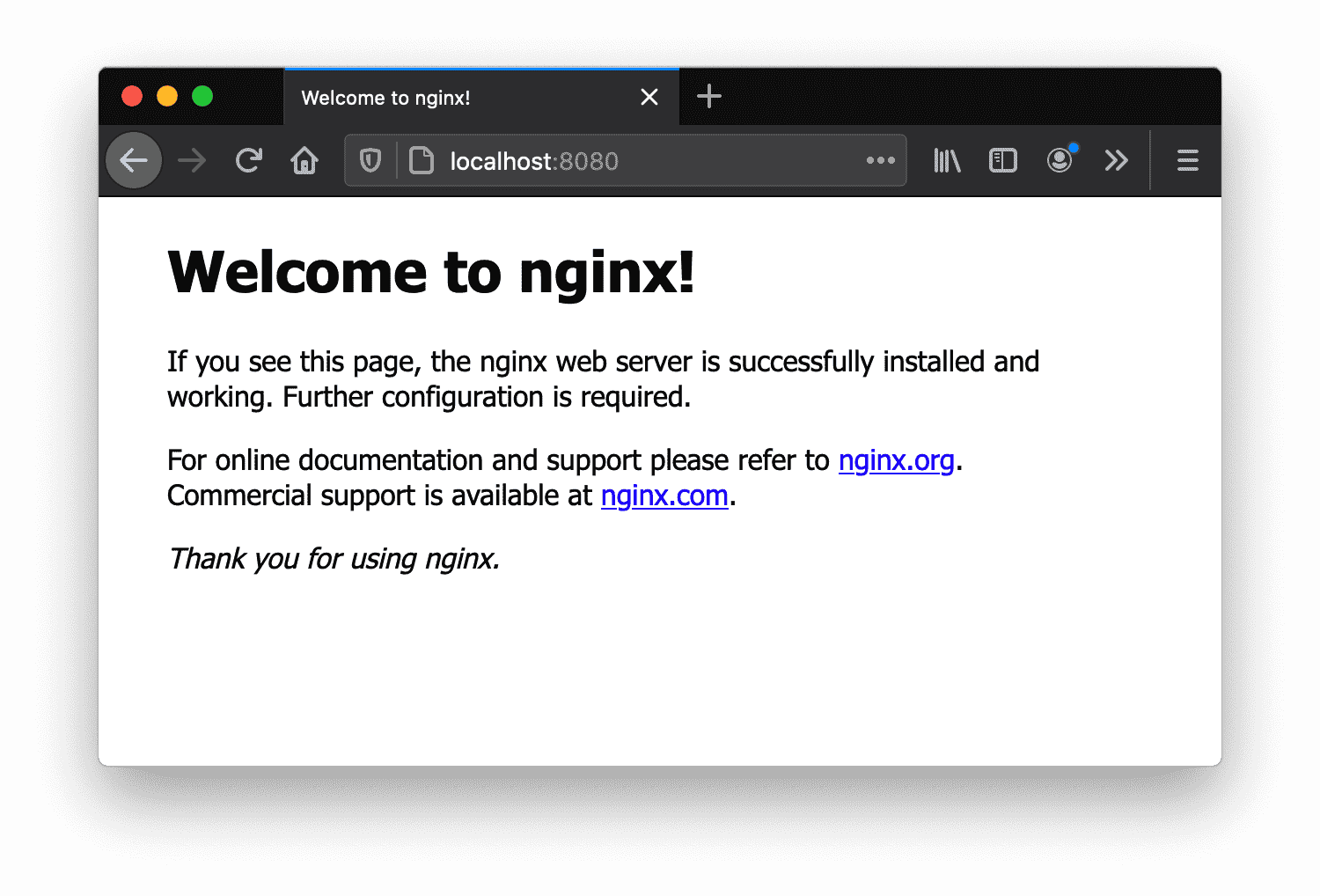

- publish a container's ports to the hostIf you now visit http://localhost:8080 to see that the nginx server is running and available on your host machine:
For this particular image it outputs useful log details to the terminal when running:
$ docker run --rm --publish 127.0.0.1:8080:80 nginx
...
...
/docker-entrypoint.sh: Configuration complete; ready for start up
172.17.0.1 - - [28/Nov/2020:00:23:32 +0000] "GET /favicon.ico HTTP/1.1" 404 153 "http://localhost:8080/" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:83.0) Gecko/20100101 Firefox/83.0" "-"
2020/11/28 00:23:32 [error] 28#28: *1 open() "/usr/share/nginx/html/favicon.ico" failed (2: No such file or directory), client: 172.17.0.1, server: localhost, request: "GET /favicon.ico HTTP/1.1", host: "localhost:8080", referrer: "http://localhost:8080/"
172.17.0.1 - - [28/Nov/2020:00:23:36 +0000] "GET / HTTP/1.1" 200 612 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:83.0) Gecko/20100101 Firefox/83.0" "-"
172.17.0.1 - - [28/Nov/2020:00:23:36 +0000] "GET / HTTP/1.1" 304 0 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:83.0) Gecko/20100101 Firefox/83.0" "-"
Docker will first check locally for the required image, if it is not found it will attempt to download it. In this case the nginx image was retrieved from Docker Hub. You can also directly search Docker Hub for any additional images that you require:

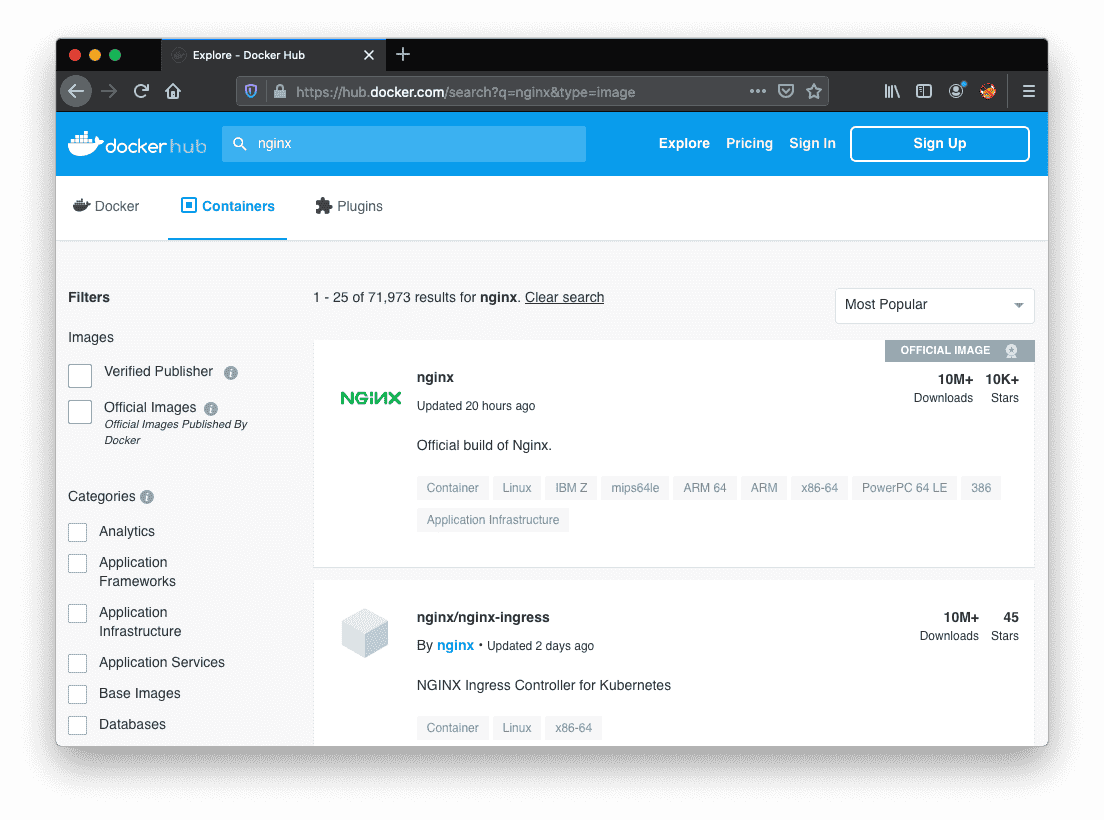

You can also make use of docker search
. I preference choosing the official
images were possible:
$ docker search postgresNAME DESCRIPTION STARS OFFICIAL AUTOMATED
postgres The PostgreSQL object-relational database sy… 8613 [OK]sameersbn/postgresql 155 [OK]
paintedfox/postgresql A docker image for running Postgresql. 77 [OK]
bitnami/postgresql Bitnami PostgreSQL Docker Image 70 [OK]
centos/postgresql-96-centos7 PostgreSQL is an advanced Object-Relational … 45
postgrest/postgrest REST API for any Postgres database 36
arm32v7/postgres The PostgreSQL object-relational database sy… 26
....
The Docker CLI can interact with other repositories too. For instance you can run your own private repositories if you are part of a large organization. You can view the current configuration for the Docker with docker info
:
$ docker infoClient:
Debug Mode: false
Server:
...
...
Registry: https://index.docker.io/v1/
Note that the above output uses the terminology Client
and Server
. The Docker CLI is the Client which interacts with the Server. The Docker daemon generally runs on the host machine, but you can also interact with remote Docker servers.
The docker image will specify a single command to run. When that process ends, the docker container will stop. We can use the docker CLI tools to inspect a particular image and see its configuration. If we look closely, we can clearly see the Cmd
configuration:
$ docker image inspect nginx
[
{
"Id": "sha256:bc9a0695f5712dcaaa09a5adc415a3936ccba13fc2587dfd76b1b8aeea3f221c",
"RepoTags": [
"nginx:latest"
],
"RepoDigests": [
"nginx@sha256:6b1daa9462046581ac15be20277a7c75476283f969cb3a61c8725ec38d3b01c3"
],
"Parent": "",
"Comment": "",
"Created": "2020-11-25T00:30:19.011398516Z",
"Container": "279e6916c4aaaf5d61e468508abd96933f4e48194bd979dc692e0196cde2d59d",
"ContainerConfig": {
"Hostname": "279e6916c4aa",
"Domainname": "",
"User": "",
"AttachStdin": false,
"AttachStdout": false,
"AttachStderr": false,
"ExposedPorts": {
"80/tcp": {}
},
"Tty": false,
"OpenStdin": false,
"StdinOnce": false,
"Env": [
"PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin",
"NGINX_VERSION=1.19.5",
"NJS_VERSION=0.4.4",
"PKG_RELEASE=1~buster"
],
"Cmd": [
"/bin/sh",
"-c",
"#(nop) ",
"CMD [\"nginx\" \"-g\" \"daemon off;\"]"
],
"Image": "sha256:2b3c3cbe8cc157ef2c15e693980ae186cffc7b7be17afb34f35de8d7c57a3169",
"Volumes": null,
"WorkingDir": "",
"Entrypoint": [
"/docker-entrypoint.sh"
],
"OnBuild": null,
"Labels": {
"maintainer": "NGINX Docker Maintainers <docker-maint@nginx.com>"
},
"StopSignal": "SIGQUIT"
},
"DockerVersion": "19.03.12",
"Author": "",
"Config": {
"Hostname": "",
"Domainname": "",
"User": "",
"AttachStdin": false,
"AttachStdout": false,
"AttachStderr": false,
"ExposedPorts": {
"80/tcp": {}
},
"Tty": false,
"OpenStdin": false,
"StdinOnce": false,
"Env": [
"PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin",
"NGINX_VERSION=1.19.5",
"NJS_VERSION=0.4.4",
"PKG_RELEASE=1~buster"
],
"Cmd": [ "nginx", "-g", "daemon off;" ], "Image": "sha256:2b3c3cbe8cc157ef2c15e693980ae186cffc7b7be17afb34f35de8d7c57a3169",
"Volumes": null,
"WorkingDir": "",
"Entrypoint": [
"/docker-entrypoint.sh"
],
"OnBuild": null,
"Labels": {
"maintainer": "NGINX Docker Maintainers <docker-maint@nginx.com>"
},
"StopSignal": "SIGQUIT"
},
"Architecture": "amd64",
"Os": "linux",
"Size": 132895204,
"VirtualSize": 132895204,
"GraphDriver": {
"Data": {
"LowerDir": "/var/lib/docker/overlay2/f38f94ded261df67599930796ee5bb17bcc4ea787644ad24d08ec16860a3aee6/diff:/var/lib/docker/overlay2/696612bb94b1c43743b6d560b443d51ecf40bfab02601451f9a40e64235f5452/diff:/var/lib/docker/overlay2/881d1f47c3bfdad56f12aa72e61c7c57cd8476db17a0de942234c46a351249fd/diff:/var/lib/docker/overlay2/6e32fb22d14ebcfcb8354f333680157e700ee495be133a7ccbdbb273f743d66d/diff",
"MergedDir": "/var/lib/docker/overlay2/eb47fdab787bc99e1116b86a63c5069051ad92e2a029bbd4f4d275e79e4650af/merged",
"UpperDir": "/var/lib/docker/overlay2/eb47fdab787bc99e1116b86a63c5069051ad92e2a029bbd4f4d275e79e4650af/diff",
"WorkDir": "/var/lib/docker/overlay2/eb47fdab787bc99e1116b86a63c5069051ad92e2a029bbd4f4d275e79e4650af/work"
},
"Name": "overlay2"
},
"RootFS": {
"Type": "layers",
"Layers": [
"sha256:f5600c6330da7bb112776ba067a32a9c20842d6ecc8ee3289f1a713b644092f8",
"sha256:7ccabd267c9f125d6eeac54e32f6fbb338431828a3ee4c61600a301205e16627",
"sha256:850c2400ea4dc52c17a0a8f8dd740628fbbf2fac8c24ce12f5c540f2d8e4a835",
"sha256:f790aed835eec5d82dae9e0cbb9021063d9fe71885542f11b7a46631176301f7",
"sha256:7e914612e36657b45436586984a556f9d3762e8e03374c6cd8c5d9e460a00c51"
]
},
"Metadata": {
"LastTagTime": "0001-01-01T00:00:00Z"
}
}
]
Note that docker run
allows you to specify an arbitrary command:
$ docker run --help
Usage: docker run [OPTIONS] IMAGE [COMMAND] [ARG...]
Run a command in a new container
This will take precedence over the default nginx
command. For instance:
$ docker run --help
Usage: docker run [OPTIONS] IMAGE [COMMAND] [ARG...]
Run a command in a new container
$ docker run \
--rm \
--publish 127.0.0.1:8080:80 \
nginx \
echo "hello from inside of the container"
hello from inside of the container
$
More interestingly, you can run this container with an interactive pseudo-tty. This allows you to run arbitrary commands from within the container in a similar manner to having SSH'd in to the container:
$ docker run --help
Usage: docker run [OPTIONS] IMAGE [COMMAND] [ARG...]
Run a command in a new container
$ docker run \
--rm \
--publish 127.0.0.1:8080:80 \
--interactive \
--tty \
nginx \
/bin/bash
root@2c0645b7bba2:/# echo "hello from inside the container"
hello from inside the container
root@2c0645b7bba2:/# nginx -v
nginx version: nginx/1.19.5
You will often find the shorthand flags being used to achieve the same effect:
# Full flag names
$ docker run \
--rm \
--publish 127.0.0.1:8080:80 \
--interactive \
--tty \
nginx \
/bin/bash
# With shorthands:
$ docker run --rm -p 127.0.0.1:8080:80 -it nginx /bin/bash
Similar to Git, Docker uses tags for versioning images. The format **image_name:tag**
is used. If you don't specify a specific tag within the run command, it will default to latest
. For example:
docker run --rm nginx
docker run --rm nginx:latest
docker run --rm nginx:1.19.5
docker run --rm nginx:1.7.1

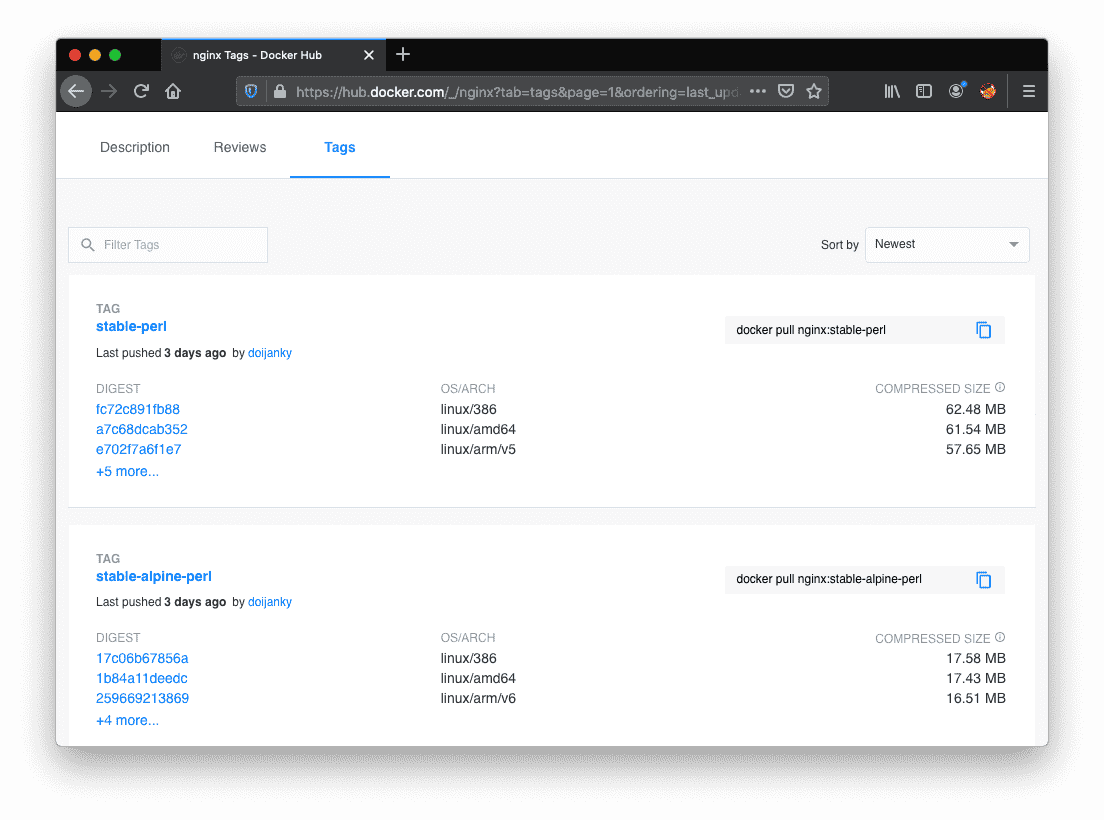

Docker Hub also provides a searchable list of the available tags:

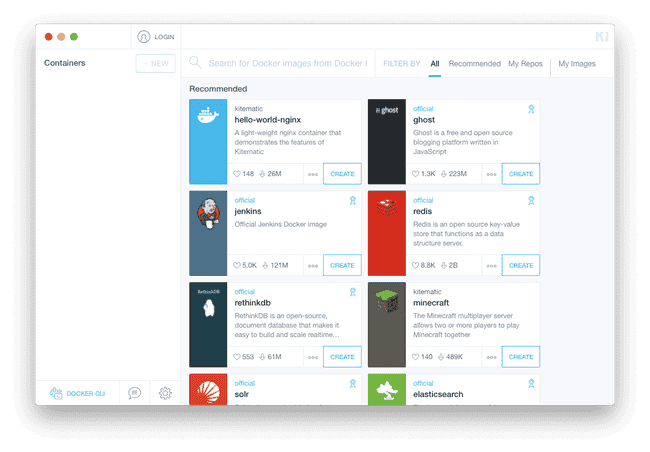

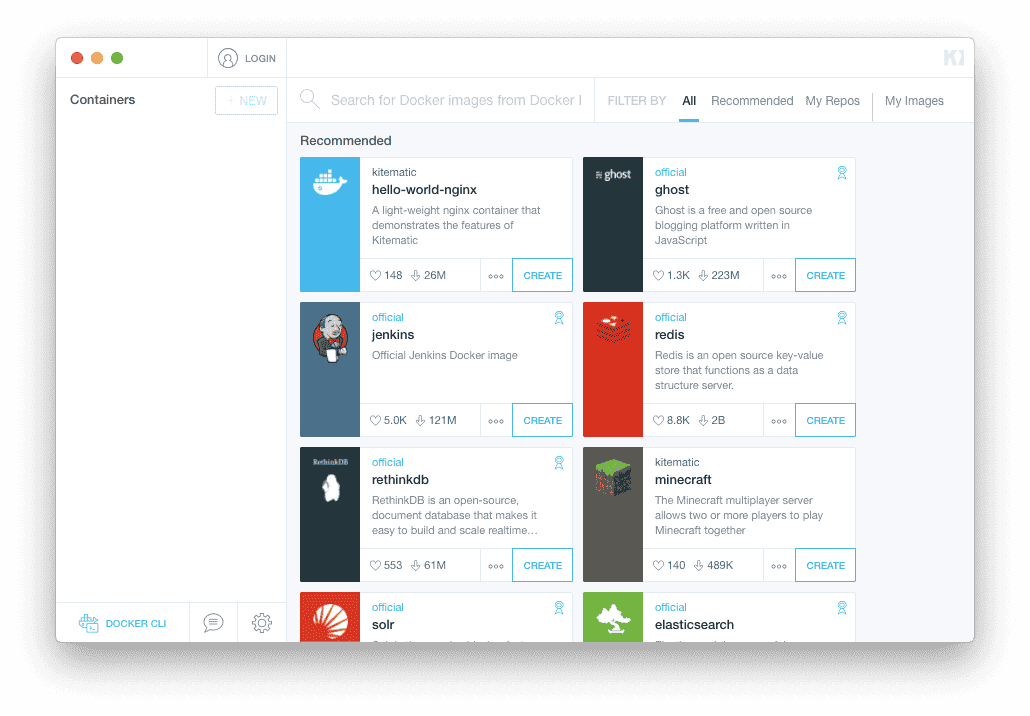

There is also Kitematic for Mac. It is now marked being deprecated, but it is still useful:
You can view the images that you have installed locally with docker image ls
. The output will show you the available tags, names, and image ids:
$ docker image ls
REPOSITORY TAG IMAGE ID CREATED SIZE
postgres 10-alpine 26a036bbaf0d 2 weeks ago 71.9MB
impacket latest 50232cf74f35 2 weeks ago 155MB
php 7.4.11-apache fb9212e0da7b 4 weeks ago 414MB
zookeeper latest 404dbf6821a5 5 weeks ago 253MB
ruby 2.7.2-alpine3.12 79f5adf3c887 5 weeks ago 51.7MB
python 3-slim 8842fc1a4cb7 5 weeks ago 115MB
nginx alpine 6b87290481e7 6 weeks ago 133MB
python 3.7-slim-buster c55447e52803 6 weeks ago 112MB
rust 1.47 2f75dad0e7a5 6 weeks ago 1.28GB
nginx latest 992e3b7be046 7 weeks ago 133MB
php 7.2-apache ed14925495ea 8 weeks ago 410MB
postgres 12.4-alpine 47aa97c69678 8 weeks ago 159MB
You can view the currently running containers with docker container ls
. Here we can also see the current command that is being run:
docker container ls
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
f2f6f5d7757d nginx "/docker-entrypoint.…" 41 seconds ago Up 41 seconds 127.0.0.1:8080->80/tcp hardcore_lamport
fdc1517cc475 tomcat:8.5.32 "catalina.sh run" 10 hours ago Up 10 hours 0.0.0.0:8009->8009/tcp, 0.0.0.0:8090->8080/tcp tomcat
Before we get started writing our images, here's some terminology to consider:
Dockerfile
- Contains a sequence of steps to create the final docker image(s)Image Layers
- A layer will be created for each step in your DockerfileBuild context
- The set of files which we can reference during the image build processDocker Image
- An immutable snapshot of your software dependencies. Think OOP classes.Docker Container
- A running version of your image. Think OOP instances.Let's run through a quick example for creating a python image. Our application is extremely simple, the folder structure will look like:
.
├── .dockerignore
├── Dockerfile
├── Pipfile
├── Pipfile.lock
└── main.py
0 directories, 5 files
The main.py
file will use Flask to host a simple hello world server on port 8000:
from flask import Flask
app = Flask(__name__)
@app.route('/')
def hello_world():
return 'Hello, World!\n'
if __name__ == '__main__':
# Inside of your application code, preference binding to 0.0.0.0
app.run(host='0.0.0.0', port=80)
The python application depends on Flask, so we can make use of Pipfile
to specify our program's dependencies:
[[source]]
name = "pypi"
url = "https://pypi.org/simple"
verify_ssl = true
[dev-packages]
[packages]
flask = '1.1.2'
[requires]
python_version = "3.7"
Finally we can create the new Dockerfile
which will define how to build our image:
FROM python:3.7.3-alpine3.9
WORKDIR /app
RUN pip install pipenv
COPY Pipfile Pipfile.lock ./
RUN pipenv install --deploy --dev --ignore-pipfile --system
COPY . .
CMD ["python3", "main.py"]
With comments:
# FROM - The base image to use
FROM python:3.7.3-alpine3.9
# WORKDIR - Specify the working directory; Future ADD/COPY/CMD/RUN commands will execute within this directory
WORKDIR /app
# RUN - Arbitrary commands
RUN pip install pipenv
# COPY - files from the docker context in to the current layer
COPY Pipfile Pipfile.lock ./
# RUN - Arbitrary commands
RUN pipenv install --deploy --dev --ignore-pipfile --system
# COPY - The remaining context files to the current image's filesystem
COPY . .
# CMD - Specify the default command to run the flask application
CMD ["python3", "main.py"]
Docker will sequentially run through each command in your Dockerfile. Common commands are:
FROM
- Specify a base image to run the following commands onRUN
- Run arbitrary commands from within the context of that layerWORKDIR
-Specify the working directory; Future ADD/COPY/CMD/RUN commands will execute within this directoryCOPY
- Copy files from the docker build context in to the image's filesystemCMD
- Default command to run within a container if none is specifiedOur next step is building the image:
$ docker build --tag image_name:latest .
Note that the final .
is used to specify the build context. Docker will look for a Dockerfile
by default in the directory, however you can also manually specify both. Generally it's best to follow the normal convention of keeping your Dockerfile in the top level of the project that you're developing. You can specify other parameters if you wish:
$ docker build -t image_name:1.0.0 -f some_folder/DockerFile ./some_build_context
Let's see the full build results:
$ docker build --tag image_name:latest .
Sending build context to Docker daemon 10.24kBStep 1/7 : FROM python:3.7.3-alpine3.9 ---> fe3ef29c73f3Step 2/7 : WORKDIR /app
---> Running in cf3cdce061ed
Removing intermediate container cf3cdce061ed
---> 0dd0597e8d53
Step 3/7 : RUN pip install pipenv
---> Running in 1815f94b39e5
Collecting pipenv
Downloading hrom pipenv)
Downloading https://files.pythonhosted.org/packages/79/88/66ac964ab8cf87c8db839c11812292a966825af205411cb67477cb4e73d3/virtualenv-20.2.1-py2.py3-none-any.whl (4.9MB)
Requirement already satisfied: setuptools>=36.2.1 in /usr/local/lib/python3.7/site-packages (from pipenv) (41.0.1)
Collecting certifi (from pipenv)
Downloading https://files.pythonhosted.org/packages/c1/6f/3d85f0850962279a7e4c622695d7b3171e95ac65308a57d3b29738b27149/certifi-2020.11.8-py2.py3-none-any.whl (155kB)
Collecting distlib<1,>=0.3.1 (from virtualenv->pipenv)
Downloading https://files.pythonhosted.org/packages/f5/0a/490fa011d699bb5a5f3a0cf57de82237f52a6db9d40f33c53b2736c9a1f9/distlib-0.3.1-py2.py3-none-any.whl (335kB)
Collecting filelock<4,>=3.0.0 (from virtualenv->pipenv)
Downloading https://files.pythonhosted.org/packages/93/83/71a2ee6158bb9f39a90c0dea1637f81d5eef866e188e1971a1b1ab01a35a/filelock-3.0.12-py3-none-any.whl
Collecting appdirs<2,>=1.4.3 (from virtualenv->pipenv)
Downloading https://files.pythonhosted.org/packages/3b/00/2344469e2084fb287c2e0b57b72910309874c3245463acd6cf5e3db69324/appdirs-1.4.4-py2.py3-none-any.whl
Collecting importlib-metadata>=0.12; python_version < "3.8" (from virtualenv->pipenv)
Downloading https://files.pythonhosted.org/packages/4a/c3/78826cdf0f7bf2d307aa4c6922aac9bd53c5d4f0de64e7db52771e641c8f/importlib_metadata-3.1.0-py2.py3-none-any.whl
Collecting six<2,>=1.9.0 (from virtualenv->pipenv)
Downloading https://files.pythonhosted.org/packages/ee/ff/48bde5c0f013094d729fe4b0316ba2a24774b3ff1c52d924a8a4cb04078a/six-1.15.0-py2.py3-none-any.whl
Collecting zipp>=0.5 (from importlib-metadata>=0.12; python_version < "3.8"->virtualenv->pipenv)
Downloading https://files.pythonhosted.org/packages/41/ad/6a4f1a124b325618a7fb758b885b68ff7b058eec47d9220a12ab38d90b1f/zipp-3.4.0-py3-none-any.whl
Installing collected packages: virtualenv-clone, distlib, filelock, appdirs, zipp, importlib-metadata, six, virtualenv, certifi, pipenv
Successfully installed appdirs-1.4.4 certifi-2020.11.8 distlib-0.3.1 filelock-3.0.12 importlib-metadata-3.1.0 pipenv-2020.11.15 six-1.15.0 virtualenv-20.2.1 virtualenv-clone-0.5.4 zipp-3.4.0
WARNING: You are using pip version 19.1.1, however version 20.2.4 is available.
You should consider upgrading via the 'pip install --upgrade pip' command.
Removing intermediate container 1815f94b39e5
---> 30a77dd84cca
Step 4/7 : COPY Pipfile Pipfile.lock ./
---> b8b33d26d125
Step 5/7 : RUN pipenv install --deploy --dev --ignore-pipfile --system
---> Running in 08094d57a642
Installing dependencies from Pipfile.lock (d4ebc7)...
Removing intermediate container 08094d57a642
---> 078c37fe7625
Step 6/7 : COPY . .
---> b0cee2af5ffb
Step 7/7 : CMD ["python3", "main.py"] ---> Running in 5435ea2d2f08Removing intermediate container 5435ea2d2f08 ---> 3c2cae465c62Successfully built 3c2cae465c62Successfully tagged image_name:latest
Some interesting points to note about this process:
image:1.0.0
and image:latest
Docker is pretty clever too. Docker will cache layers if the build context is not modified. If we rerun the build command again, it will finish immediately. Note that the image ids are identical to the previous run:
$ docker build -t my_image:latest .
Sending build context to Docker daemon 10.24kB
Step 1/7 : FROM python:3.7.3-alpine3.9
---> fe3ef29c73f3
Step 2/7 : WORKDIR /app
---> Using cache
---> 0dd0597e8d53
Step 3/7 : RUN pip install pipenv
---> Using cache
---> 30a77dd84cca
Step 4/7 : COPY Pipfile Pipfile.lock ./
---> Using cache
---> b8b33d26d125
Step 5/7 : RUN pipenv install --deploy --dev --ignore-pipfile --system
---> Using cache
---> 078c37fe7625
Step 6/7 : COPY . .
---> Using cache
---> b0cee2af5ffb
Step 7/7 : CMD ["python3", "main.py"]
---> Using cache
---> 3c2cae465c62
Successfully built 3c2cae465c62
Successfully tagged my_image:latest
If the docker daemon notices that the build context has changed for a particular layer, the cache is invalidated for that step, as well as subsequent steps. It is for this reason we always copy package dependencies first to ensure expensive package installs are cached.
We can now run the application, and publish the docker's ports to the host machine:
$ docker run --rm -p 127.0.0.1:8000:80 my_image:latest
* Serving Flask app "main" (lazy loading)
* Environment: production
WARNING: This is a development server. Do not use it in a production deployment.
Use a production WSGI server instead.
* Debug mode: off
* Running on http://127.0.0.1:80/ (Press CTRL+C to quit)
We can use curl to ensure that everything is working as intended:
$ curl http://127.0.0.1:8000
Hello, World!
In some scenarios we may notice our build context is far larger than expected. This is how we can reduce the files sent to the build context:
$ docker build -t docker_ignore_example .
Sending build context to Docker daemon 395.4MBStep 1/6 : FROM node:10.9-alpine
---> df2d34f007a1
...
This can be achieved with .dockerignore
file:
$ cat .dockerignore
# Ignore all files by default
*
# Allow only the required files
!public/
!src/
!config-overrides.js
!package.json
!yarn.lock
Now we can see that the build context has been dramatically reduced in size:
$ docker build -t docker_ignore_example .
Sending build context to Docker daemon 313.9kBStep 1/6 : FROM node:10.9-alpine
---> df2d34f007a1
...
This simple change will:
.git
, .env
, etc.Earlier it was mentioned that each step within a Dockerfile will become a layer. These layers combine will produce the final runnable image. These layers can be downloaded separately, and in parallel. Note that if you have previous layers already, they won't be downloaded again:
docker pull ruby:2.5
Unable to find image 'ruby:2.5' locally
2.5: Pulling from library/ruby
756975cb9c7e: Pull complete
d77915b4e630: Pull complete
5f37a0a41b6b: Pull complete
96b2c1e36db5: Pull complete
c495e8de12d2: Downloading [====================> ] 78.82MB/192.3MB
49d50a24de5f: Download complete
9a2ce94cdbc3: Downloading [===================================> ] 15.87MB/22.52MB
9b0b42fb87d9: Download complete
Likewise tags are just aliases:
$ docker tag
"docker tag" requires exactly 2 arguments.
See 'docker tag --help'.
Usage: docker tag SOURCE_IMAGE[:TAG] TARGET_IMAGE[:TAG]
Create a tag TARGET_IMAGE that refers to SOURCE_IMAGE
You can view every layer with the docker history
command:
$ docker history my_image
IMAGE CREATED CREATED BY SIZE COMMENT
72938d6b403c 17 hours ago /bin/sh -c #(nop) CMD ["python3" "main.py"] 0B
74533d6b0fb2 17 hours ago /bin/sh -c #(nop) COPY dir:fff6578bafd7bd497… 6.05kB
226a426e62ac 17 hours ago /bin/sh -c pipenv install --deploy --dev --i… 5.49MB
915660a9cf93 17 hours ago /bin/sh -c #(nop) COPY multi:03c61ef0e8a7669… 5.68kB
a7822573f57e 18 hours ago /bin/sh -c pip install pipenv 43MB
357900f7d29a 18 hours ago /bin/sh -c #(nop) WORKDIR /app 0B
fe3ef29c73f3 19 months ago /bin/sh -c #(nop) CMD ["python3"] 0B
<missing> 19 months ago /bin/sh -c set -ex; wget -O get-pip.py 'ht… 6.06MB
<missing> 19 months ago /bin/sh -c #(nop) ENV PYTHON_PIP_VERSION=19… 0B
<missing> 19 months ago /bin/sh -c cd /usr/local/bin && ln -s idle3… 32B
<missing> 19 months ago /bin/sh -c set -ex && apk add --no-cache --… 74.8MB
<missing> 19 months ago /bin/sh -c #(nop) ENV PYTHON_VERSION=3.7.3 0B
<missing> 19 months ago /bin/sh -c #(nop) ENV GPG_KEY=0D96DF4D4110E… 0B
<missing> 19 months ago /bin/sh -c apk add --no-cache ca-certificates 551kB
<missing> 19 months ago /bin/sh -c #(nop) ENV LANG=C.UTF-8 0B
<missing> 19 months ago /bin/sh -c #(nop) ENV PATH=/usr/local/bin:/… 0B
<missing> 19 months ago /bin/sh -c #(nop) CMD ["/bin/sh"] 0B
<missing> 19 months ago /bin/sh -c #(nop) ADD file:a86aea1f3a7d68f6a… 5.53MB
# Without truncation
$ docker history nginx --no-trunc
...
Let's say we had the following docker build break:
$ docker build -t my_image:latest .Sending build context to Docker daemon 9.728kB
Step 1/7 : FROM python:3.7.3-alpine3.9
---> fe3ef29c73f3
Step 2/7 : WORKDIR /app
---> Using cache
---> 0dd0597e8d53
Step 3/7 : RUN pip install pipenv
---> Using cache
---> 30a77dd84cca
Step 4/7 : COPY Pipfile Pipfile.lock ./
---> 15d2fbf43c6c
Step 5/7 : RUN pipenv install --deploy --dev --ignore-pipfile --system ---> Running in 32a28be440a6[PipenvOptionsError]: File "/usr/local/lib/python3.7/site-packages/pipenv/vendor/click/core.py", line 610, in invoke[PipenvOptionsError]: return callback(*args, **kwargs)[PipenvOptionsError]: File "/usr/local/lib/python3.7/site-packages/pipenv/vendor/click/decorators.py", line 21, in new_func[PipenvOptionsError]: return f(get_current_context(), *args, **kwargs)[PipenvOptionsError]: File "/usr/local/lib/python3.7/site-packages/pipenv/cli/command.py", line 253, in install[PipenvOptionsError]: site_packages=state.site_packages[PipenvOptionsError]: File "/usr/local/lib/python3.7/site-packages/pipenv/core.py", line 1928, in do_install[PipenvOptionsError]: site_packages=site_packages,[PipenvOptionsError]: File "/usr/local/lib/python3.7/site-packages/pipenv/core.py", line 615, in ensure_project[PipenvOptionsError]: validate=validate, skip_requirements=skip_requirements, system=system[PipenvOptionsError]: File "/usr/local/lib/python3.7/site-packages/pipenv/core.py", line 282, in ensure_pipfile[PipenvOptionsError]: "--system is intended to be used for pre-existing PipfileERROR:: --system is intended to be used for pre-existing Pipfile installation, not installation of specific packages. Aborting.The command '/bin/sh -c pipenv install --deploy --dev --ignore-pipfile --system' returned a non-zero code: 1
Each intermediate docker stage has a unique id that can be used to run commands against arbitrary intermediate stages of a docker build. This is great for debugging broken builds. We can run the step prior to failure within an interactive shell and investigate further:
# The build failed. Let's use the previous image id:
$ docker build -t my_image:latest .
Sending build context to Docker daemon 9.728kB
....
Step 4/7 : COPY Pipfile Pipfile.lock ./ ---> 15d2fbf43c6c <- The unique idStep 5/7 : RUN pipenv install --deploy --dev --ignore-pipfile --system ---> Running in 32a28be440a6[ Omitted ]The command '/bin/sh -c pipenv install --deploy --dev --ignore-pipfile --system' returned a non-zero code: 1
# Run a new command against the intermediate step. Note that alpine doesn't have `/bin/bash`:
$ docker run --rm -it 15d2fbf43c6c /bin/sh
/app # ls
Pipfile Pipfile.lock
/app # cat Pipfile
/app # du -h Pipfile
0 Pipfile
/app #
If you're having problems with an already running docker container and you're not sure what's going wrong, you can use exec
to run an arbitrary command against a currently running container. This works in a similar way to docker run
:
docker exec --help
Usage: docker exec [OPTIONS] CONTAINER COMMAND [ARG...]
Run a command in a running container
For instance:
# Run an arbitrary container
$ docker run --rm -p 127.0.0.1:8080:80 -it nginx /bin/bash
# View the running containers to see the container id (Same as `docker container ls`)
$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
223129cea261 nginx "/docker-entrypoint.…" 6 minutes ago Up 6 minutes 127.0.0.1:8080->80/tcp bold_wilbur
# exec an interactive tty against an existing container
$ docker exec -it 223129cea261 /bin/bash
root@223129cea261:/# echo $(whoami; id; hostname)
root uid=0(root) gid=0(root) groups=0(root) 223129cea261
You can also name docker containers to achieve the same effect:
# Run an arbitrary container with a name
$ docker run --name my_nginx_container --rm -p 127.0.0.1:8080:80 nginx
# exec an interactive tty
$ docker exec -it my_nginx_container /bin/bash
root@223129cea261:/# echo "hello from inside the container"
hello from inside the container
By default when you run a container it will run in the foreground of your terminal. However, it is also possible the process in the background using detached mode:
# -d, --detach Run container in background and print container ID
$ docker run -d --rm -p 127.0.0.1:8080:80 nginx
30022d51e37ccef2e9a9fd042a408d2697a8f8eefa61c437a298e4ae9eff8f68
It is possible to view the logs of any container, whether attached or not, with docker logs
:
docker logs --help
Usage: docker logs [OPTIONS] CONTAINER
Fetch the logs of a container
For example:
$ docker logs --follow 30022d51e37ccef2e9a9fd042a408d2697a8f8eefa61c437a298e4ae9eff8f68 --since 5m
172.17.0.1 - - [28/Nov/2020:01:35:38 +0000] "GET / HTTP/1.1" 304 0 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:83.0) Gecko/20100101 Firefox/83.0" "-"
172.17.0.1 - - [28/Nov/2020:01:35:38 +0000] "GET / HTTP/1.1" 304 0 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:83.0) Gecko/20100101 Firefox/83.0" "-"
172.17.0.1 - - [28/Nov/2020:01:35:38 +0000] "GET / HTTP/1.1" 304 0 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:83.0) Gecko/20100101 Firefox/83.0" "-"
172.17.0.1 - - [28/Nov/2020:01:35:38 +0000] "GET / HTTP/1.1" 304 0 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:83.0) Gecko/20100101 Firefox/83.0" "-"
The attach
command can also be useful to attach to the previously detached docker container. Although even in this scenario I would more frequently use exec
:
$ docker attach --help
Usage: docker attach [OPTIONS] CONTAINER
Attach local standard input, output, and error streams to a running container
If you're trying to debug locally, rather than on production, the final trick is to remove the -d flag, and view the error synchronously.
Docker is great for running stand alone, portable, applications and software. It can be used to create images for building/compiling software in your CI environments, or for local development purposes.
Let's say I wanted to cross compile software for a different architecture than my host machine. Setting up cross-compilers on your own machine can be complicated. Instead we can create an replicable build environment using Docker. This was the approach that I took as part of developing my os_concepts project. Let's create a simple Dockerfile for this:
FROM ubuntu:20.04
# Install the required software
RUN apt update && \
DEBIAN_FRONTEND=noninteractive apt install -y \
build-essential \
curl \
libgmp3-dev \
libmpc-dev \
libmpfr-dev \
nasm \
texinfo \
qemu-system-i386 \
python3 \
python3-dev \
python3-distutils \
git
# Copy standalone script for installing cross compilers
COPY ./install_crosscompiler.sh ./
RUN ./install_crosscompiler.sh all
# Add the cross compiler to the path, to ensure 'i386-elf-gcc' is now available
ENV PATH="~/opt/cross/bin:${PATH}"
# Installing other useful tools
RUN git clone https://github.com/pwndbg/pwndbg && \
cd pwndbg && \
./setup.sh
The docker image can be built as normal:
$ docker build -t osbuilder .
... Many minutes later...

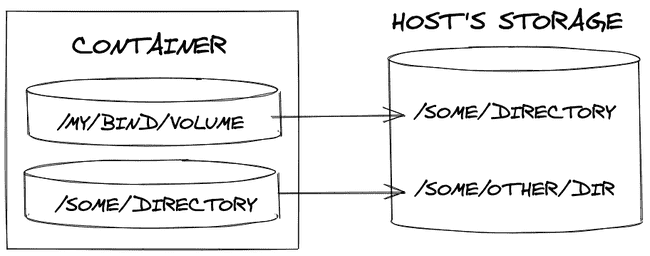

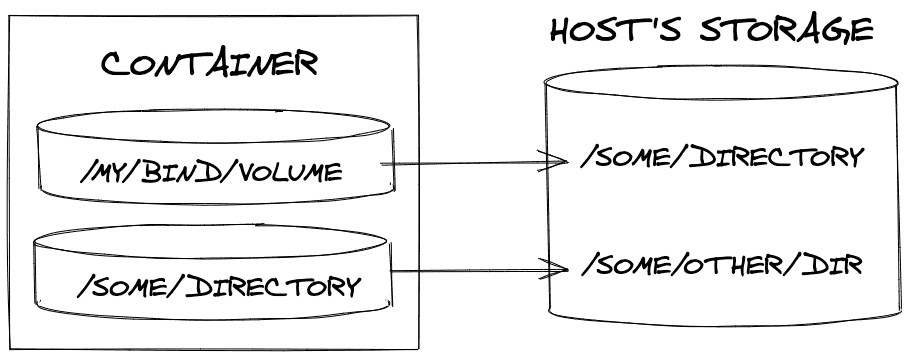

Now we can run the container as normal. However, we will use Docker's volumes to ensure that our source files are available on Docker's file system:
In this example the volume and working directory are additionally specified:
# Run the osbuilder image, and specify the volume and working directory
$ docker run --rm -it -v $(pwd):$(pwd) -w $(pwd) osbuilder /bin/bash
root@c37f7fde3908:/Users/alan/Documents/code/os_concepts# make
... generating object files etc ...
... generating the final compiled assets...
root@c37f7fde3908:/Users/alan/Documents/code/os_concepts#
Any modifications to files, or newly created files, will be available on the host. Now the compiled assets are available on the host machine:
$ du -h os.img
20K os.img
Note that on a CI environment, you may preference using like docker cp
instead:
$ docker cp --help
Usage: docker cp [OPTIONS] CONTAINER:SRC_PATH DEST_PATH|-
docker cp [OPTIONS] SRC_PATH|- CONTAINER:DEST_PATH
Copy files/folders between a container and the local filesystem
We've seen this already:
docker run --rm --publish 127.0.0.1:8080:80 nginx
On Linux there is a docker0 bridge network adapter available.
$ ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 00:0c:29:71:6c:1e brd ff:ff:ff:ff:ff:ff
inet 192.168.246.234/24 brd 192.168.246.255 scope global dynamic noprefixroute eth0
valid_lft 1305sec preferred_lft 1305sec
inet6 fe80::20c:29ff:fe71:6c1e/64 scope link noprefixroute
valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default link/ether 02:42:1b:3a:a0:58 brd ff:ff:ff:ff:ff:ff inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0 valid_lft forever preferred_lft forever4: br-b43f932cc92f: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
link/ether 02:42:8e:30:ee:4b brd ff:ff:ff:ff:ff:ff
inet 172.18.0.1/16 brd 172.18.255.255 scope global br-b43f932cc92f
valid_lft forever preferred_lft forever
We can view the available docker networks:
$ docker network ls
NETWORK ID NAME DRIVER SCOPE
2937a473cc07 bridge bridge local
1fb029dabed9 host host local
c72689d423c5 none null local
We can inspect the network to see the configuration, and what containers are present:
$ docker network inspect bridge
docker network inspect bridge
[
{
"Name": "bridge", "Id": "2937a473cc0778888e4e17dd18bb29b7535f81e9936a3960c176239a02a5b87f",
"Created": "2020-11-30T21:25:26.036494464-05:00",
"Scope": "local",
"Driver": "bridge",
"EnableIPv6": false,
"IPAM": {
"Driver": "default",
"Options": null,
"Config": [ { "Subnet": "172.17.0.0/16", "Gateway": "172.17.0.1" } ] },
"Internal": false,
"Attachable": false,
"Ingress": false,
"ConfigFrom": {
"Network": ""
},
"ConfigOnly": false,
"Containers": {
"51a56a5043ea6550be28b6fe31c64bde1db0f51c396f6f1ae09feb904ceba65a": {
"Name": "zen_shamir", "EndpointID": "53d782e9bef4c300e056d11ba9bc058daafdc9ee42698678b7dc0e7b08d242e7", "MacAddress": "02:42:ac:11:00:02", "IPv4Address": "172.17.0.2/16", "IPv6Address": "" }
},
"Options": {
"com.docker.network.bridge.default_bridge": "true",
"com.docker.network.bridge.enable_icc": "true",
"com.docker.network.bridge.enable_ip_masquerade": "true",
"com.docker.network.bridge.host_binding_ipv4": "0.0.0.0",
"com.docker.network.bridge.name": "docker0", "com.docker.network.driver.mtu": "1500"
},
"Labels": {}
}
]
Let's run a simple Python web server:
# Run a Python container
$ docker run -it --rm -v $(pwd):$(pwd) -w $(pwd) -p 8000:8000 python:3.7 /bin/bash
# Run a simple web server:
root@91b3d7db6852:/tmp/example# python3 -m http.server
Serving HTTP on 0.0.0.0 port 8000 (http://0.0.0.0:8000/) ...
If we curl from the host to the bound port, either on it's IP address, or via the published port on the host:
$ curl http://172.17.0.2:8000
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>Directory listing for /</title>
</head>
<body>
<h1>Directory listing for /</h1>
<hr>
<ul>
</ul>
<hr>
</body>
</html>
$ curl http://localhost:8000
We will see the IP address that matches the docker0
adapter from the docker logs:
$ docker run -it --rm -v $(pwd):$(pwd) -w $(pwd) -p 8000:8000 python:3.7 /bin/bash
root@e8407b9c71f9:/tmp/example# python3 -m http.server
Serving HTTP on 0.0.0.0 port 8000 (http://0.0.0.0:8000/) ...
172.17.0.1 - - [01/Dec/2020 02:52:21] "GET / HTTP/1.1" 200 -
172.17.0.1 - - [01/Dec/2020 02:52:23] "GET / HTTP/1.1" 200 -
Firstly, there is no docker0 bridge on macOS. Due to the way networking is implemented on Mac, the interface exists within the virtual machine.
Let's run through a quick example of the host and container communicating. Let's create a Python docker container running a web server, and publishing the port to the host machine:
# Run a Python container
$ docker run -it --rm -v $(pwd):$(pwd) -w $(pwd) -p 8000:8000 python:3.7 /bin/bash
# Run a simple web server:
root@91b3d7db6852:/tmp/example# python3 -m http.server
Serving HTTP on 0.0.0.0 port 8000 (http://0.0.0.0:8000/) ...
On our host machine we can curl port 8000 to interact with the docker container:
$ curl 127.0.0.1:8000
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>Directory listing for /</title>
</head>
<body>
<h1>Directory listing for /</h1>
<hr>
<ul>
</ul>
<hr>
</body>
</html>
We will see the docker container's logs update to signify that a request was successfully handled:
# The previously running web server now shows the get request
root@91b3d7db6852:/tmp/example# python3 -m http.server
Serving HTTP on 0.0.0.0 port 8000 (http://0.0.0.0:8000/) ...
172.17.0.1 - - [01/Dec/2020 01:03:22] "GET / HTTP/1.1" 200 -
For development purposes - to allow for the docker container to communicate to the host, you can use a pseudo dns entries or an IP:
# Available since Docker 17.12
root@91b3d7db6852:/tmp/foo# curl docker.mac.for.local:8001
...
# Available since of Docker 18.03
root@91b3d7db6852:/tmp/foo# curl host.docker.internal:8001
...
root@91b3d7db6852:/tmp/foo# curl 172.17.0.1:8001
...
On the host machine's logs we will see:
$ python -m SimpleHTTPServer 8001
Serving HTTP on 0.0.0.0 port 8001 ...
127.0.0.1 - - [01/Dec/2020 01:05:32] "GET / HTTP/1.1" 200 -
127.0.0.1 - - [01/Dec/2020 01:20:45] "GET / HTTP/1.1" 200 -
We can also use docker inspect
on the container for more information:
$ docker inspect 91b3d7db6852
[
{
"Id": "91b3d7db6852519060b9f7fb12c2c4a7a7d6cb340c6e2087d13a179d98a01068",
"Created": "2020-12-01T01:02:43.4832385Z",
"Path": "/bin/bash",
.... etc ...
"NetworkSettings": {
"Bridge": "",
"SandboxID": "6dd875321d752ce1722982c51d8ecadb4c6f526007ca67fe13f2e002966199e6",
"HairpinMode": false,
"LinkLocalIPv6Address": "",
"LinkLocalIPv6PrefixLen": 0,
"Ports": {
"8000/tcp": [
{
"HostIp": "0.0.0.0",
"HostPort": "8000"
}
]
},
.... etc ...
"Networks": {
"bridge": {
"IPAMConfig": null,
"Links": null,
"Aliases": null,
"NetworkID": "f6b83dc59637f7871b769be4b642abf302bf1aab9b059322067500949562fbd7",
"EndpointID": "1224dd01e3373048a9b2a015e710207e8743ee8a588a60591c269cfec177c417",
"Gateway": "172.17.0.1",
"IPAddress": "172.17.0.2",
"IPPrefixLen": 16,
"IPv6Gateway": "",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "02:42:ac:11:00:02",
"DriverOpts": null
}
}
}
]
An additional CLI written with Python which simplifies the process of running multi-container Docker applications.
Some benefits include:
The important commands are:
docker-compose build
- Build all of the required containersdocker-compose up
- Run all of the containersdocker-compose down
- Stop all of the containersdocker-compose exec
- Execute a one off command against a containerAn example docker-compose.yml
file may be:
version: "3.7"
services:
database:
image: postgres:10.5-alpine
ports:
# The host machine may have postgres installed and running on port 5432, choosing an arbitrary port instead.
- 5510:5432
backend:
build:
context: ./backend
ports:
# The default port for flask is most likely taken, choose an arbitrary port instead.
- 5511:5000
depends_on:
- database
entrypoint: dockerize -wait tcp://database:5432 -timeout 30s
command: flask run --host=0.0.0.0
env_file:
- .env
volumes:
- ./backend:/srv/app
frontend:
build:
context: ./frontend
ports:
- 3000:3000
depends_on:
- backend
command: yarn dev
volumes:
- ./frontend/pages:/srv/app/pages
- ./frontend/src:/srv/app/src
The runtime environment variables can be set by a .env
file. Note that the database url references the container name, which docker will resolve:
FLASK_DEBUG=1
FLASK_APP=project/app
DATABASE_URL=postgresql+psycopg2://postgres@database:5432/postgres
Kubernetes

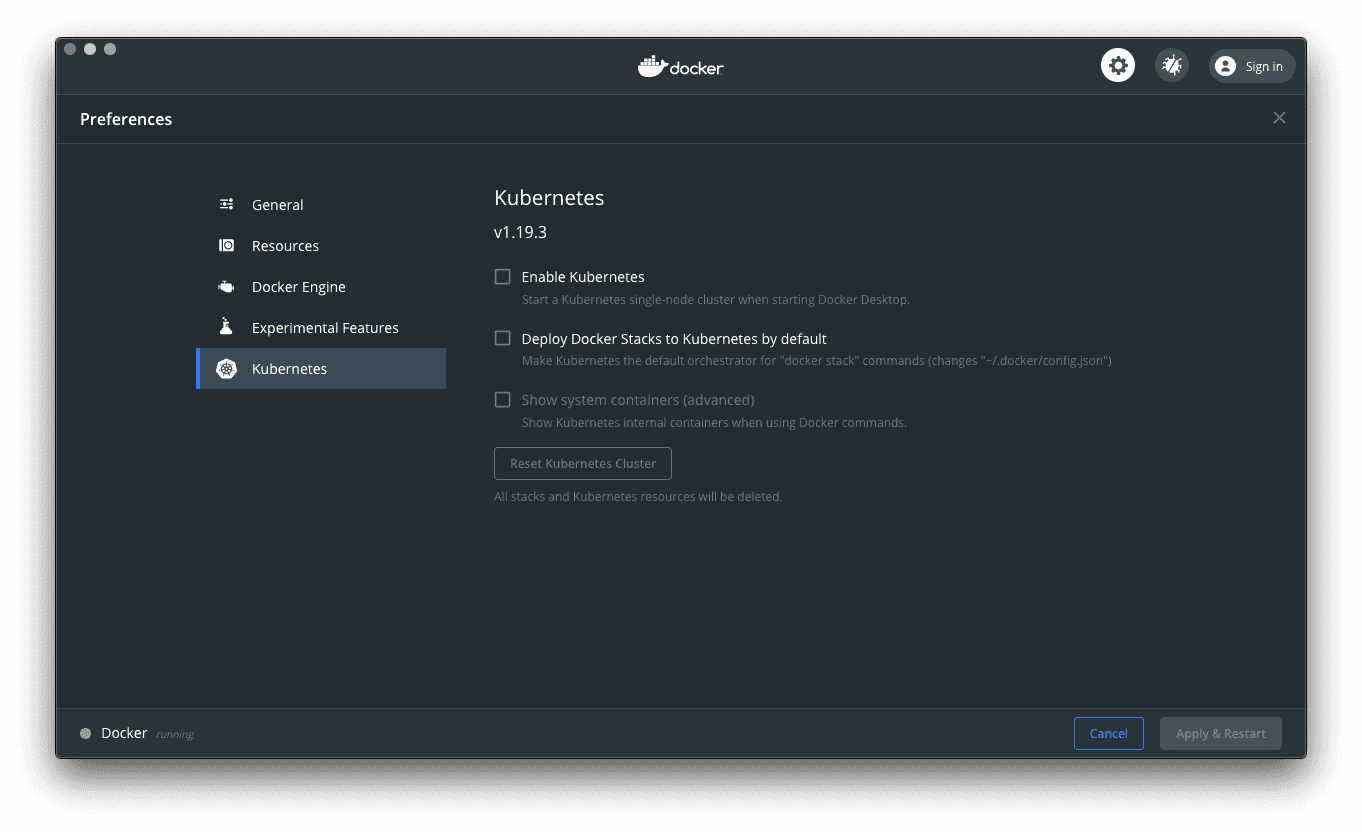

Kubernetes takes the art of running multi-container applications a step further. It also supports yaml configuration. However, it provides additional complexities such as application autoscaling, and deployment management of your production cluster. Although Kubernetes is more of a production tool, Docker for Desktop has support for Kubernetes:
If you want to quickly test arbitrary versions of software, Docker is great. For instance if you wanted to test an older version of the Ruby REPL:
$ docker run -it --rm -v $(pwd):$(pwd) -w $(pwd) ruby:2.5 /bin/bash
root@f91c616b84ec:/tmp/foo# irb
irb(main):001:0> puts RUBY_VERSION
2.5.8
=> nil
Jumping into a container with Python:
$ docker run -it --rm -v $(pwd):$(pwd) -w $(pwd) python:3.7 /bin/bash
root@154dd0a667a6:/tmp/foo# python3
Python 3.7.9 (default, Nov 18 2020, 14:10:47)
[GCC 8.3.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>>
Or perhaps PHP:
$ docker run -it --rm -v $(pwd):$(pwd) -w $(pwd) php:5.6.4 /bin/bash
root@89c80f4c734e:/tmp/example# php foo.php
hello world
root@89c80f4c734e:/tmp/example# php -a
Interactive shell
php > echo 4 + 5;
9
php >
It's also useful to run arbitrary versions of databases too:
# The --env flag, or -e for short, can be used to inject any environment variable
$ docker run --rm -e MYSQL_ROOT_PASSWORD=password -p 3306:3306 mariadb:10.5.8
$ docker run --rm -p 5432:5432 -e POSTGRES_PASSWORD=mysecretpassword postgres:13.1
Or other common technologies such as redis etc:
$ docker run --rm -p 6379:6379 redis
Creating a throw away container with an older Ubuntu versions, publishing SMB ports on the host machine, and manually installing samba:
$ docker run -it --rm -p 139:139 -p 445:445 ubuntu:16.04 /bin/bash
root@c9a2e1f1a0c9:/# apt update
root@c9a2e1f1a0c9:/# apt install -y samba
root@c9a2e1f1a0c9:/# samba --version
Version 4.3.11-Ubuntu
root@c9a2e1f1a0c9:/# exit
$
Or if you wanted a more permanent Dockerfile
to add to your collection:
FROM ubuntu:16.04
RUN apt update && \
DEBIAN_FRONTEND=noninteractive apt install -y \
samba
# ...
You may try starting an interactive container, for it to immediately fail with the following error. Try using /bin/sh
or /bin/csh
etc instead:
# Trying to use /bin/bash doesn't work
$ docker run -it --rm some_image /bin/bash
docker: Error response from daemon: OCI runtime create failed: container_linux.go:346: starting container process caused "exec: \"/bin/bash\": stat /bin/bash: no such file or directory": unknown.
# Try a different shell
$ docker run -it --rm some_image /bin/sh
/example $

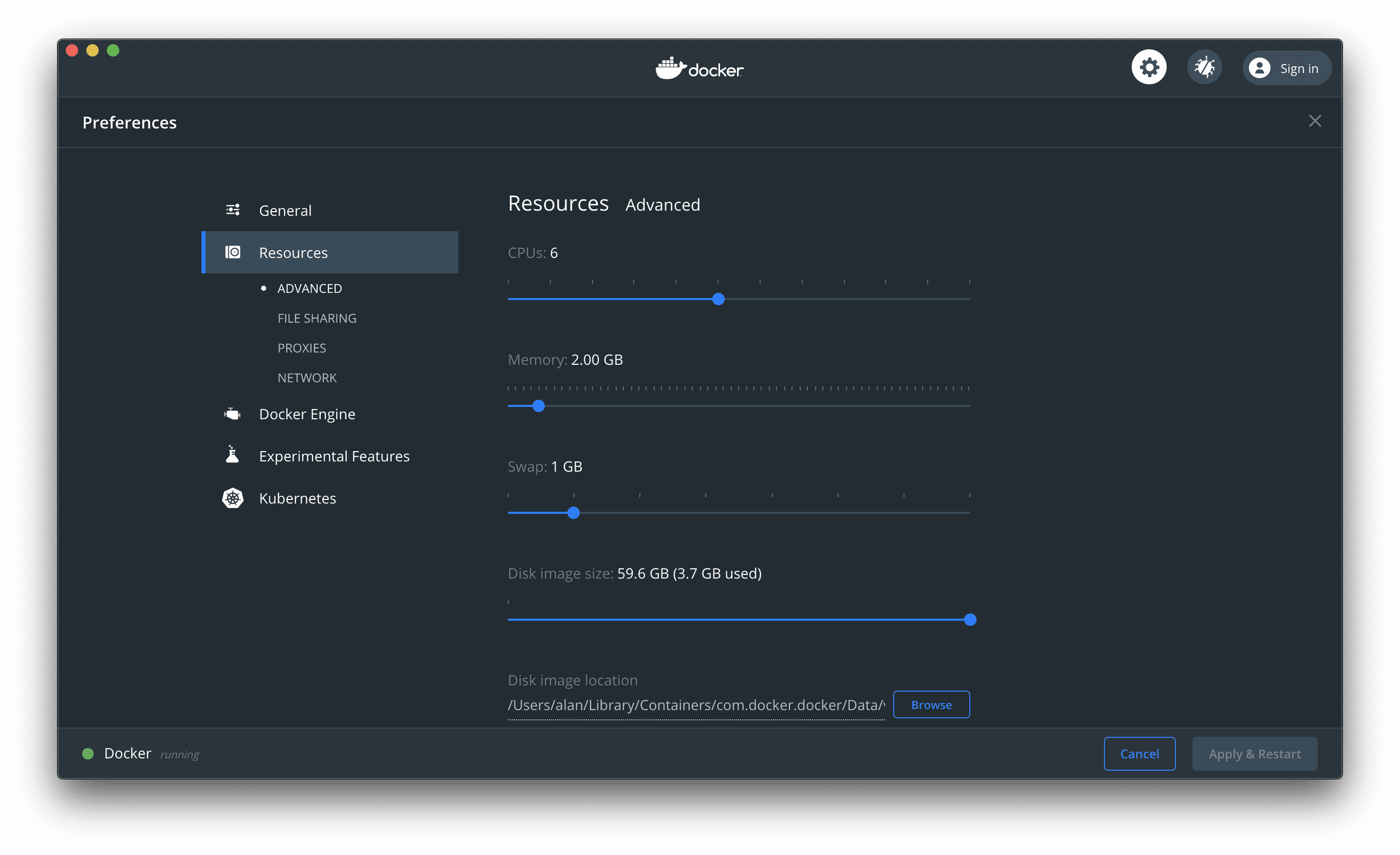

If you're running large Java docker containers, they may run out of memory. Depending on the configuration the containers may restart frequently, or start and immediately die. The 137 exit status code is generally an indicator that the docker container has been killed due to memory constraints. You can configure this limit:
You may have no longer needed containers / images that you wish to remove:
docker system prune
- Remove all unused datadocker kill $(docker ps -a -q)
- Kill all containersdocker rmi -f $(docker images -a -q)
- Remove all imagesFirstly, there are build stage security issues:
.dockerignore
file correctly can lead to files being copied from your docker context in to the final image unintentionally, for instance the contents of .git/.env
. For images that are running web servers, this may lead to these files being accessible to publicly, or if the images are distributed users may gain access to secrets unintentionally.docker history
. Use docker secrets.Additionally there are run time security issues:
--publish
then it will default to 0.0.0.0
. This may or may not be a security concern for your use case and set up./root
etc. This problem also exists if a user is granted write permissions to this socket with docker -H unix:///var/run/docker.sock run -v /:/host -it ubuntu chroot /host /bin/bash
--read-only
flag when running containers, and read-only volumes
